Name:
high pressure and temperature spinning drop interface tensiometer
Model:
TX500HP
Description:

High pressure and temperature spinning drop interface tensiometer model TX500HP is special designed for measurement of interface tension (IFT) between liquid-gas/liquid-fluid system under high pressure and high temperature.

High pressure and temperature spinning drop interface tensiometer model TX500HP  is special designed for measurement of interface tension (IFT) between liquid-gas/liquid-fluid system under high pressure and high temperature. Max pressure can reach to 70MPa and temperature range is between -30-200. IFT measurement via pressure and temperature is very useful for application such as Enhanced Oil Recovery (tertiary oil recover). TX500HP can be used to measure IFT between ASP or binary liquid mixture systems and crude oil in the simulated condition with high pressure and temperature with min value about 107mN/m. And beyond that, it can be used to measure IFT of your system with compressed liquid gas such as CO2 or natural gas with extra connector port for gas system.High pressure and temperature spinning drop interface tensiometer model TX500HP is special designed for measurement of interface tension (IFT) between liquid-gas/liquid-fluid system under high pressure and high temperature. Max pressure can reach to 70MPa and temperature range is between -30-200℃. IFT measurement via pressure and temperature is very useful for application such as Enhanced Oil Recovery (tertiary oil recover). TX500HP can be used to measure IFT between ASP or binary liquid mixture systems and crude oil in the simulated condition with high pressure and temperature with min value about 10-7mN/m. And beyond that, it can be used to measure IFT of your system with compressed liquid gas such as CO2 or natural gas with extra connector port for gas system.

ultra high pressure and temperature spinning drop interfacial tensiometry

interfacial tensiometerHigh Pressure And Temperature Spinning Drop Interface Tensiometer Used For Ultra-low Interfacial Tension Measurement:

Under conditions of constant temperature and constant pressure, interface energy increases as interface area increases. The increment of interface energy per unit area is referred to as interface tension, which is formed for the different attractive forces of molecules on both sides of interface to molecules on the interface. Spinning drop interfacial tensiometer can accurately analyze low / ultra-low interface tension, while normal methods such as Wilhelmy plate method and Du Nouy ring method are incapable of measuring such low values.

In general, interface tension of 10-2-10-1mN/m is referred to as low interface tension, and that of below 10-3mN/m as ultra-low interface tension.

To measure ultra-low interface tension, the original balance between gravity and interface tension should be artificially altered to enable the shape of balanced droplet can be easily measured. Making system rotate to increase action of centrifugal force field is the measurement principle of spinning drop method. As shown below:

interfacial tensiometer High Pressure And Temperature Spinning Drop Interface Tensiometer Model TX500HP Application
- IFT measurement of liquid-gas, liquid-fluid or liquid-fluid and liquid gas via pressure and temperature
- Development of ASP, binary liquid mixture systems or carbon-dioxide flooding in oil field
- Measuring surface tension or interface tension under high pressure and setup temperature by spinning drop
method (max pressure:75Mpa and max temperature: 200℃)
- Development of surfactant

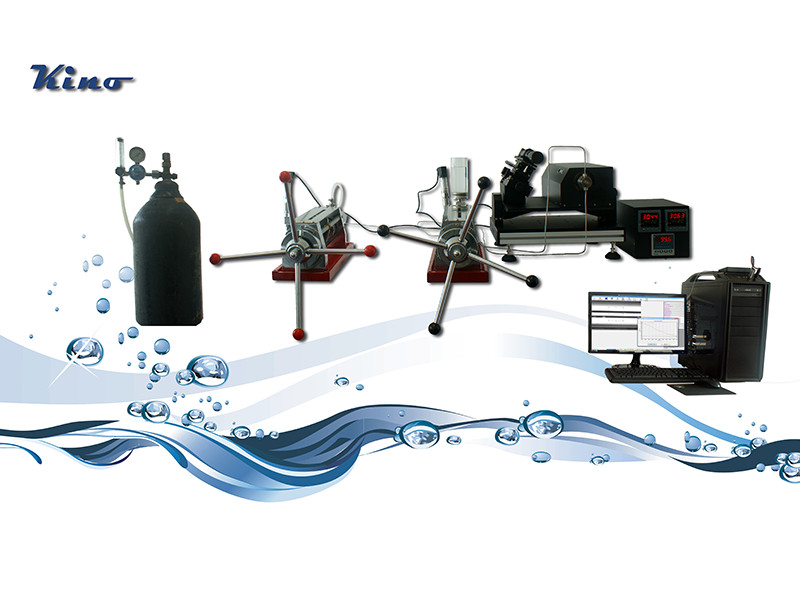

interfacial tensiometer Schematic Draw of High Pressure And Temperature Spinning Drop Interface Tensiometer Model TX500HP

interfacial tensiometer

interfacial tensiometer

interfacial tensiometer Performance feature

Leading technology at ultra-high pressure and temperature spinning drop chamber with easy operation and safer
1, various spinning drop chamber with different pressure for choice to meet your special need (5M Pa, 10M Pa, 30M Pa, 50M Pa, 70M Pa  or customization)
2, Build in heating system with max temperature 200℃ or more(Accepting custom-made)
3, Removable spindle system: Replaceable sample tube and easier to clean sample tube and sealing part to avoid cross pollution
4, Dynamic sealing system and high speed spindle made of Ti to promise dependable sealing and lower locked-rotor torque
5, Providing extra connector port for inert gas, nature gas or CO2


Mechanics-professional and easy to operate
1, Mechanics of three-axis precision positioning stages for lens control provide you clearer imaging and more accurate imaging position;
2, Lens tilt control and level control of chamber facilitate determining baseline between melt and solid and easy to get a vertical needle.
3, Tilted unit for adjusting vision angle of parallel background light to promise a good drop shape.


Clearer and higher speed vision system
1, Advanced drop shape profile lens and parallel background light ensures sharper imaging and clearer drop image edge;
2, Continuous zoom industrial lens with magnification of 0.35-4.5X enables larger VOA, suitable for samples of varies volumes;
3, Lens with long working distance (180mm) effectively protect vision system from high temperature;
4, World highest speed camera from Germany can reach 87FPS (WVGA)-340FPS (GIF)


World leading analysis software CAST®4.0
1, Calculating interface tension automatically which is useful for measurement of dynamic interface tension:
You can measure interface tension (IFT) via time by just press one button “measurement” to start capturing drop image, calculating IFT, saving captured images and calculated result without any manual intervention. IFT via rotating speed, temperature, pressure and time will saved and managed by CAST4 and it can be exported into an Excel file.
2, Calculating average IFT based on drop profile instead of two points at drop edge to acquire high precision result.
3, Humanized software design and database management to promise:
(1) Wizard design of standard windows is designed for various measurement operators.
(2) Database management: one-to-one correspondence between measured value and image; query and modifying of historical data at anytime
(2) Measured data is Excel exportable for you to create your measurement report conveniently.
(3) Secondary modification of eigenvalue. The software will record all your operation traces for you to check measured data, effectively avoiding errors caused by human.
(5) Comfortable language interface designed by Unicode enables more convenient and compatible for you to operate.


Specification of High ressure and temperature spinning drop interface tensiometer

Provides system with 5MPa, 10MPa, 30MPa, 50MPa, 70MPa for your choice

Max pressure

30MPa or 70MPa (According to type you selected)

Max speed of motor

10,000 RPM

Control system of motor

Servo System from Switzerland

Heating system

Build-in heating system with max temperature: 200 as standard
Optional system includes: max 300
 or Peltier thermostatic system (0) or thermostatic water bath system (80-200)

Max temperature

200 or customization

ID of sample tube

4mm

Material of sample tube

sapphire  glass (Above 10MPa) or quartz glass (Below 10MPa)

Sealing method of sample tube

Both ends open, dynamic sealing, replaceable tube

Material of high speed spindle

Ti

Sampling method of crude oil

Extra dosing hole for sampling crude oil real time

Method for reading pressure

Digital pressure sensor with resolution 0.01MPa, accuracy 0.25, max 100M Pa and interface RS485

Method for reading temperature

Reading temperature of liquid at tube directly by PT100

Resolution of temperature

0.1

Extra ports

exhaust port and connector port for gas

High pressure screw piston pump

For liquid-gas or liquid/fluid system (one pump)

or for liquid-fluid-liquid gas system (two pumps)

Control method

Manual (Automatically pump for option)

Max pressure

85MPa

Exhaust port

Provided with a drain port at the bottom of the chamber

Max volume of container

100mL (container made of quartz glass with volume 250mL)

Value and tube

Made of stainless steel for high pressure system

Hastelloy C276 for option

Control of vision system



3 axis positioning stage

Positioning stage of XY axis with travel range 60mm and accuracy about 0.01mm, positioning stage of Z axis with travel range 13mm and accuracy 0.01mm.

Tilted stage

For levelness adjustment of vision system with micrometer

Camera

Resolution 130M with speed 60400FPS, interface: USB3.0

Lens

0.74.5XZoom: 6.5:1

Background light

Mono LED

Dimension and weight



Dimension of Main body

90(L)*55(W)*65 (H) cm

Weight of Main body

41kg

Dimension of piston pump

18(L)*90(W)*60 (H)  cm / per unit

Weight of piston pump

34kg / per unit

Software and others



Range of IFT

10-6-100mN/m

Range of readable width

0-4mm depending on ID of tube

Accuracy of reading

0.001mm

Measuring method

Vonnegut method or Bashford-Adams correcting

Calculating method

Pressing one button “measurement” to start capturing drop image, calculating IFT, saving captured images and calculated result without any manual intervention.

Report management

One-to-one correspondence between measured value and image; query and modifying of historical data at any time.

Secondary modification of eigenvalue

The software will record all your operation traces for you to check measured data, effectively avoiding errors caused by human.

Result exporting

All measured result and captured images can be exported.

Live windows

Live video and captured images

Function controlled by software

Speed, focus and position of camera

Real-time curve

IFT via time
